Description

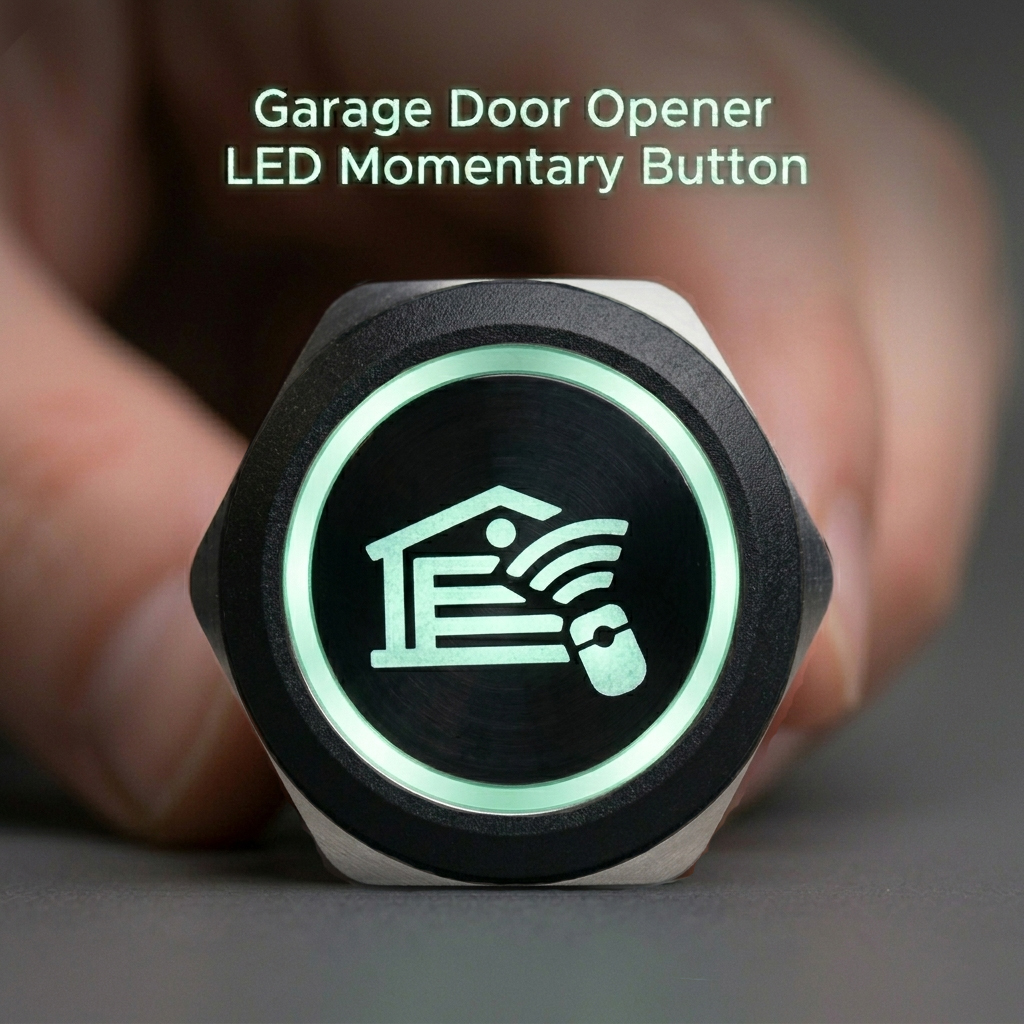

12V LED Momentary Push-Button Switch with Custom Laser-Etched Garage Door Icon

Give your garage door button a professional factory finish. This premium 22mm 12V momentary push-button switch is engineered for style, durability, and tactile performance. Featuring a crisp, custom laser-etched garage door and remote icon right on the face.

Both the icon and the outer halo ring feature a brilliant white LED backlight, making it effortless to find in low-light or nighttime conditions. Perfect for golf carts, automotive dashes, marine panels, UTVs, and custom control boxes.  The button can be wired such that the light turns green while the button is depressed for visual confirmation that door opener signal is being sent.

Key Features & Benefits

• Custom Laser-Etched Icon: Features a highly detailed, permanent laser-etched garage door opener graphic that won’t fade, scratch, or peel over time.

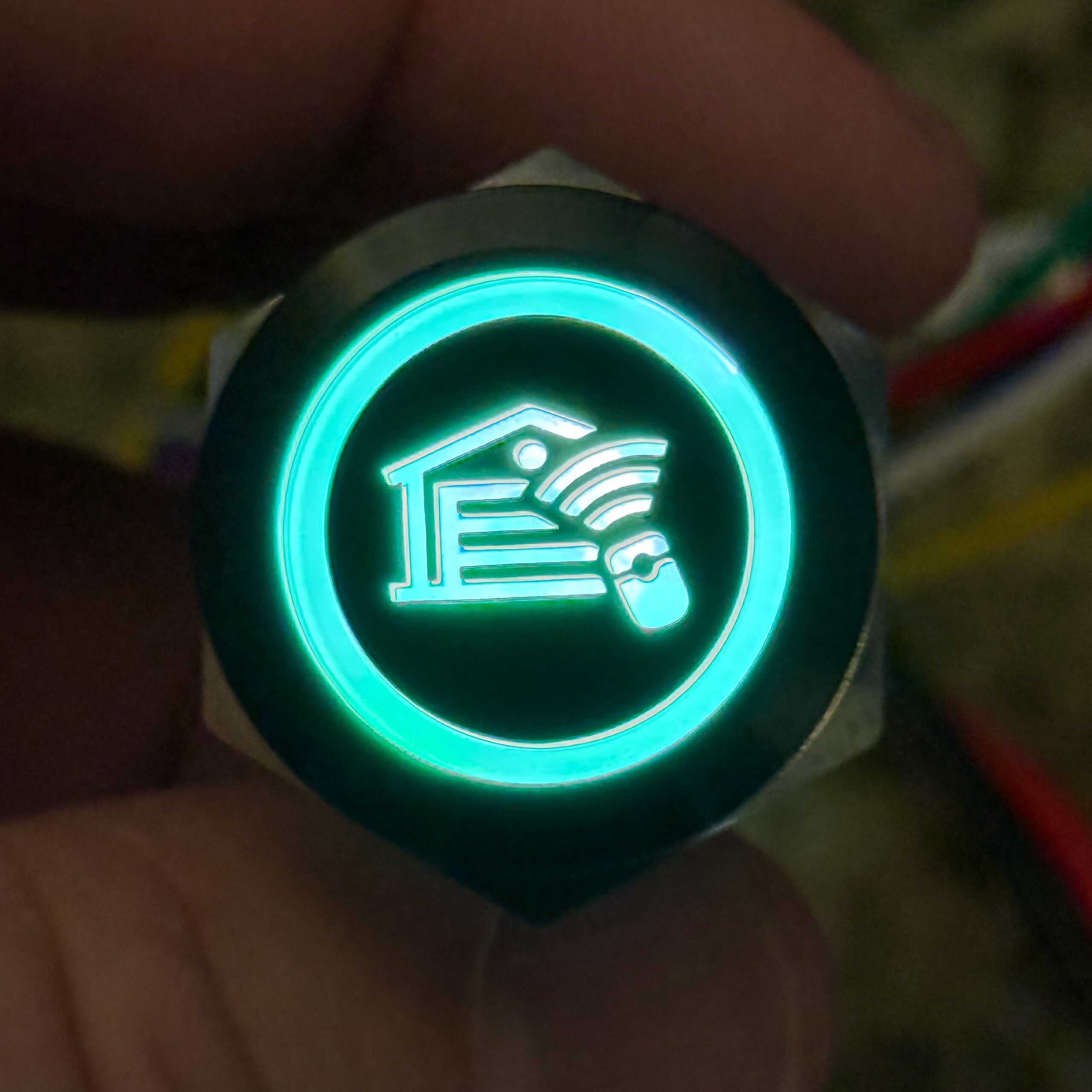

• Dual-Color LED Backlighting: Both the central icon and the outer halo ring illuminate with a crisp, modern white and/or green LED glow for maximum visibility and a high-end look.

• Premium Metal Construction: Designed with a heavy-duty, brushed stainless steel housing and hexagonal inner bezel that resists corrosion and handles rugged environments with ease.

• Satisfying Tactile Resistance: High-quality momentary action mechanism provides smooth function every time you press it, ensuring positive engagement.

• IP67 Waterproof & Dustproof: Built to withstand the elements, making it ideal for open-cabin vehicles like golf carts, side-by-sides, and boats.

Technical Specifications

• Switch Type: 22mm Momentary On / Off (Returns to off position when released)

• Voltage Rating: 12V DC

• LED Color: Bright White (and/or) Green (Backlit Ring & Icon)

• Material: Stainless Steel Housing and Inner Bezel / Heavy-Duty Polymer Outer Bezel and Face

• Protection Rating: IP67 Waterproof

• Mounting Style: Panel mount with threaded hexagonal nut

Installation Note

This is a component-level 12V electrical switch. Splicing, wiring, or integration into a transmitter module and your vehicle’s 12V power supply (for LED power) is required for functionality.

What’s In The Box?

• (1) Premium 12V LED Momentary Button with Laser-Etched Garage Icon

• (1) Threaded Metal Hexagonal Mounting Nut

• (1) Weatherproof Rubber O-Ring Washer
